Beam Ring

Fixture

• 48 Pixels
• 48 pcs 20W RGBW 4 in 1 LED
• Beam angle: 2.5°

• Beam diameter: D40mm
• Color Temperature:( W) 6000-8000k
• 3 meter Spot diameter: 16.5cm

Others

• Dimensions: D904 x W79 x H 85mm
• Material: Aluminum
• Power: 761W Maximum
• Total Power: 1100w
• Weight: 5.9kg

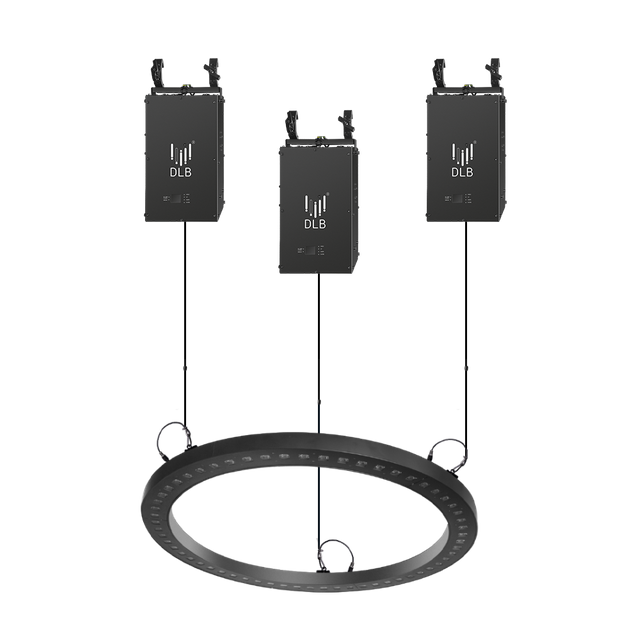

• Number of Winches: 3

Control

• DMX Protocol

    Winch DMX Channels:

• Winch A: 198ch
• Winch B: 4ch
• Winch C: 4ch
