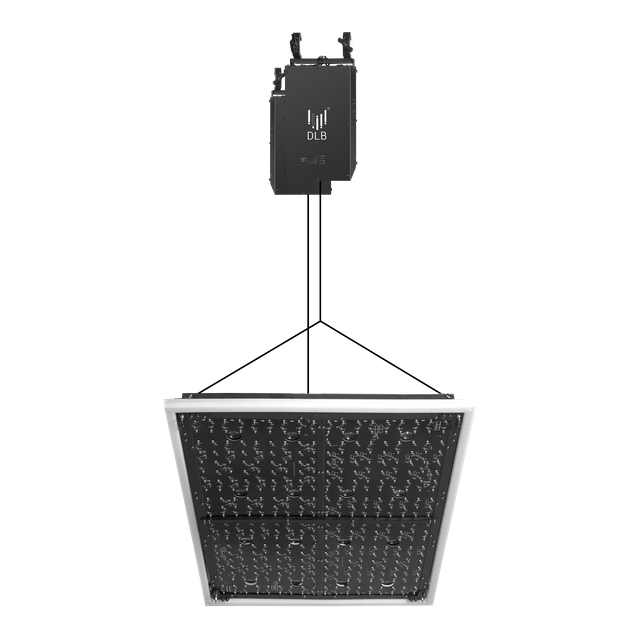

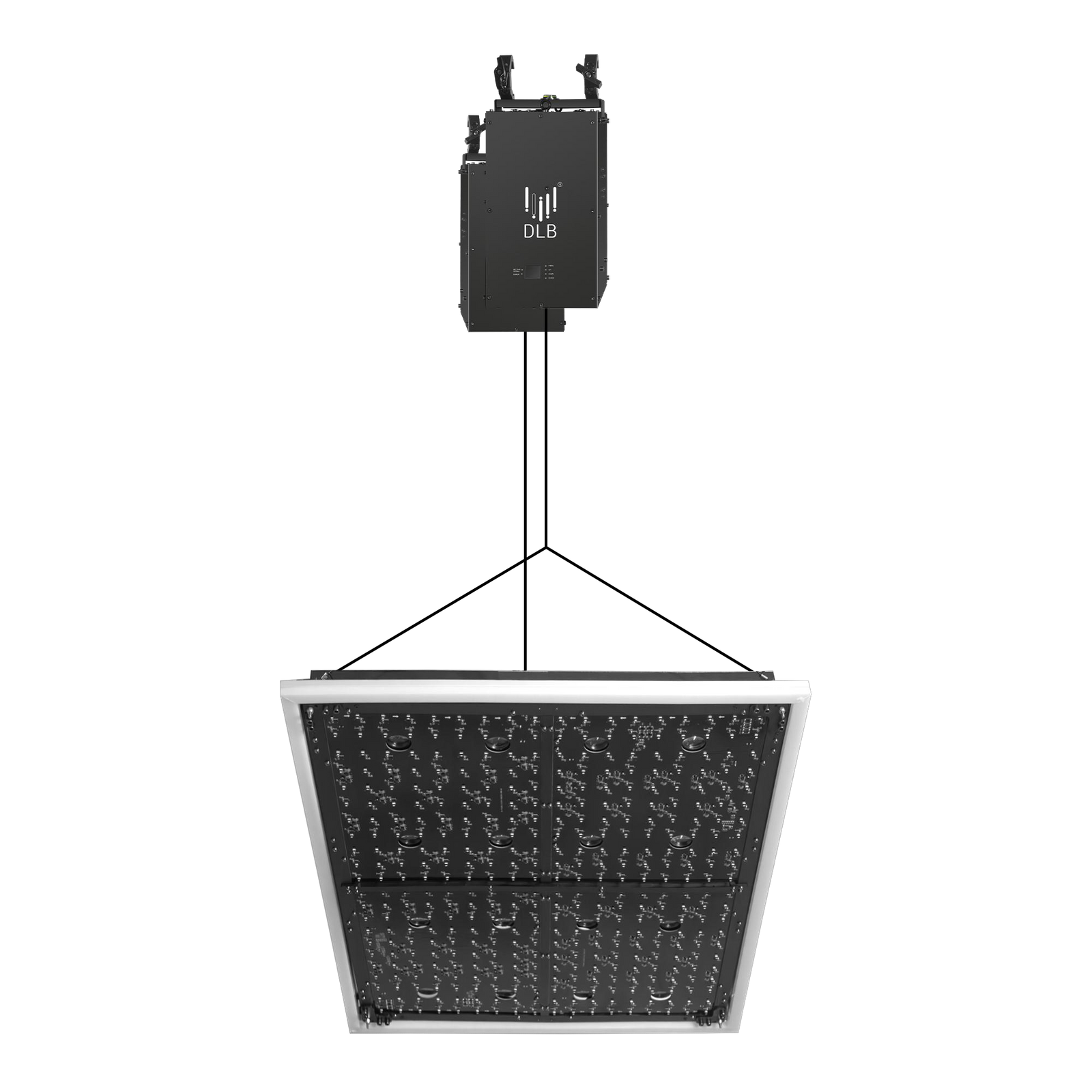

Square Beam Panel

Fixture

    Part 1: Panel Pixels

• 441 Pixels (9 pixels is virtual)
• 432 pcs 0.2W RGB 3 in 1 LED

    Part 2: Rectangle

• 20 Pixels
• 120 pcs 0.3W RGBW 4 in 1 LED
• Color Temperature: (W) 3000k

    Part 3: Beam

• 9 Pixels
• 9 pcs 20W White (7000k)
• Beam angle: 1.5°
• Beam diameter: D35mm

Others

• Dimensions: 600 x 600 x 80mm (LxWxH)
• Material: Aluminium+PE+PCB
• Power: 360W Maximum
• Total Power: 750W
• Weight: 6.4kg
• Number of Winches: 2

Control

• SPI Protocol
• SPI Controller: Occupy 3 universes
• Need to use with SPI Pixel controller

    DMX Channels:

• Winch A: 4ch
• Winch B: 4ch
